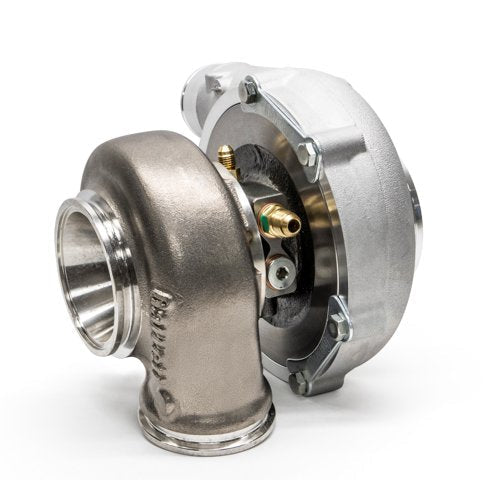

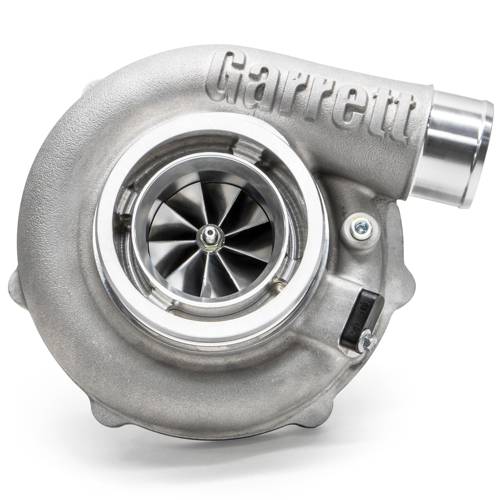

Garrett G30-770 Standard Rotation 0.83 A/R Vband In/Out Turbocharger
Garrett G30-770 Standard Rotation 0.83 A/R Vband In/Out Turbocharger
Garrett G30-770 Standard Rotation 0.83 A/R Vband In/Out Turbocharger
Garrett G30-770 Standard Rotation 0.83 A/R Vband In/Out Turbocharger
Garrett G30-770 Standard Rotation 0.83 A/R Vband In/Out Turbocharger
Click to zoom in
  • Verified Fitment

    Tested For Your Vehicle

  • In-House Experts

    We know our products

  • Added Value

    Installation & Tuning Offered

  • Fast Shipping

    Included 2-Day Shipping on Most Orders

Garrett G30-770 Standard Rotation 0.83 A/R Vband In/Out Turbocharger

2 sold in last 8 hours
880697-5009S
Many in stock
$2,642.37
Introducing the Garrett® G30-770 Turbocharger – Unleash the Power! Upgrade your vehicle's performance with the cutting-edge...
Size Guide
$2,642.37

customers are viewing this product
Garrett G30-770 Standard Rotation 0.83 A/R Vband In/Out Turbocharger

Introducing the Garrett® G30-770 Turbocharger – Unleash the Power!

Upgrade your vehicle's performance with the cutting-edge Garrett® G30-770 standard turbo assembly kit. This turbocharger is meticulously designed to deliver exceptional power and efficiency, making it the ultimate choice for performance enthusiasts and tuners alike.

Product Features:

  1. New G Series Compressor Wheel Aerodynamics: The G30-770 features state-of-the-art compressor wheel aerodynamics, ensuring maximum airflow and improved compressor efficiency.

  2. Fully Machined Speed Sensor and Pressure Ports: Equipped with fully machined speed sensor and pressure ports, this turbocharger allows for precise data monitoring and analysis.

  3. Standard and Reverse Rotation Configurations: The G30-770 offers the flexibility of standard and reverse rotation configurations to fit various vehicle setups.  This turbocharger is setup for Standard Rotation (Most Common).

  4. Oil Restrictor and Water Fittings Included: The turbo assembly kit includes an oil restrictor and water fittings, providing a hassle-free installation experience.

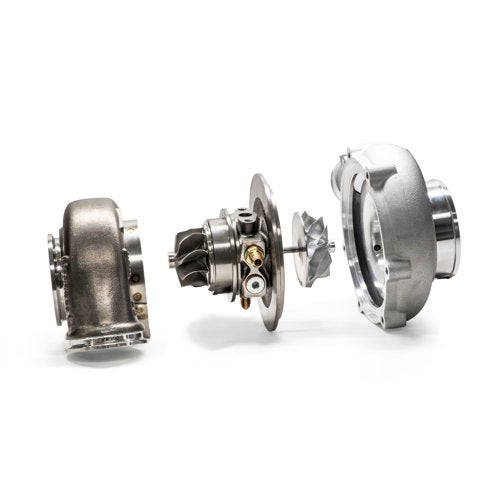

  5. One-Piece Center Housing and Backplate: Enhancing durability and reliability, the G30-770 boasts a one-piece center housing and backplate construction.

  6. Customizable Water Jacket Ports: With four water jacket ports, this turbocharger offers customization options to tailor the installation to your specific needs.

  7. Mar-M Turbine Wheel Material: The turbine wheel material is crafted from Mar-M, rated to withstand extreme temperatures of up to 1050°C | 1922°F.

  8. Stainless Steel Turbine Housings: The turbine housings are made of stainless steel, ensuring resilience in high-temperature environments up to 1050°C | 1922°F.

Product Specifications:

  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch (90mm) O.D. w/81mm centering ring V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN
  • Includes Turbine Housing Inlet & Outlet V-Band Clamps

Upgrade to the Garrett® G30-770 Turbocharger and experience unrivaled power, durability, and performance on the road or the track. Dominate the competition and take your vehicle to new heights with this top-of-the-line turbocharger!
